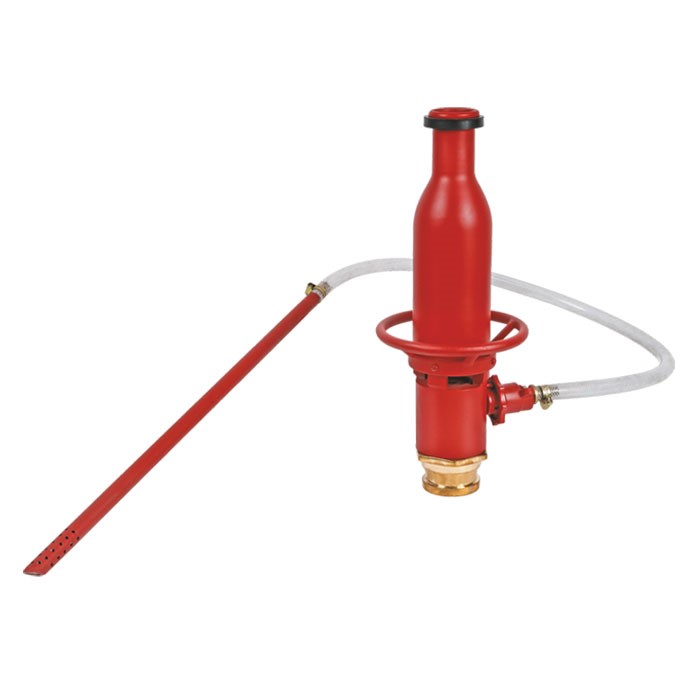

Foam Equipment
- Low expansion foam branch with 225 LPM flow at 7 bar with expansion ratio of 1:2 to 1:10.
- With in-built foam inductor along with pick-up tube and dip pipe.
- Built-in foam proportioning valve from 0 to 6% induction.
- Built-in shut off valve.

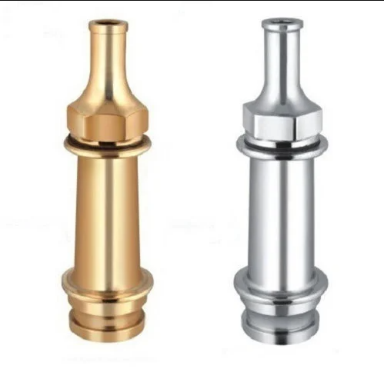

Branch Pipe & Nozzles
- Type – Solid Jet Nozzle.
- Material – Gunmetal / Aluminum Alloy / Stainless Steel.
- Operating Pressure – 10 bar.
- Finish – Natural Polish.

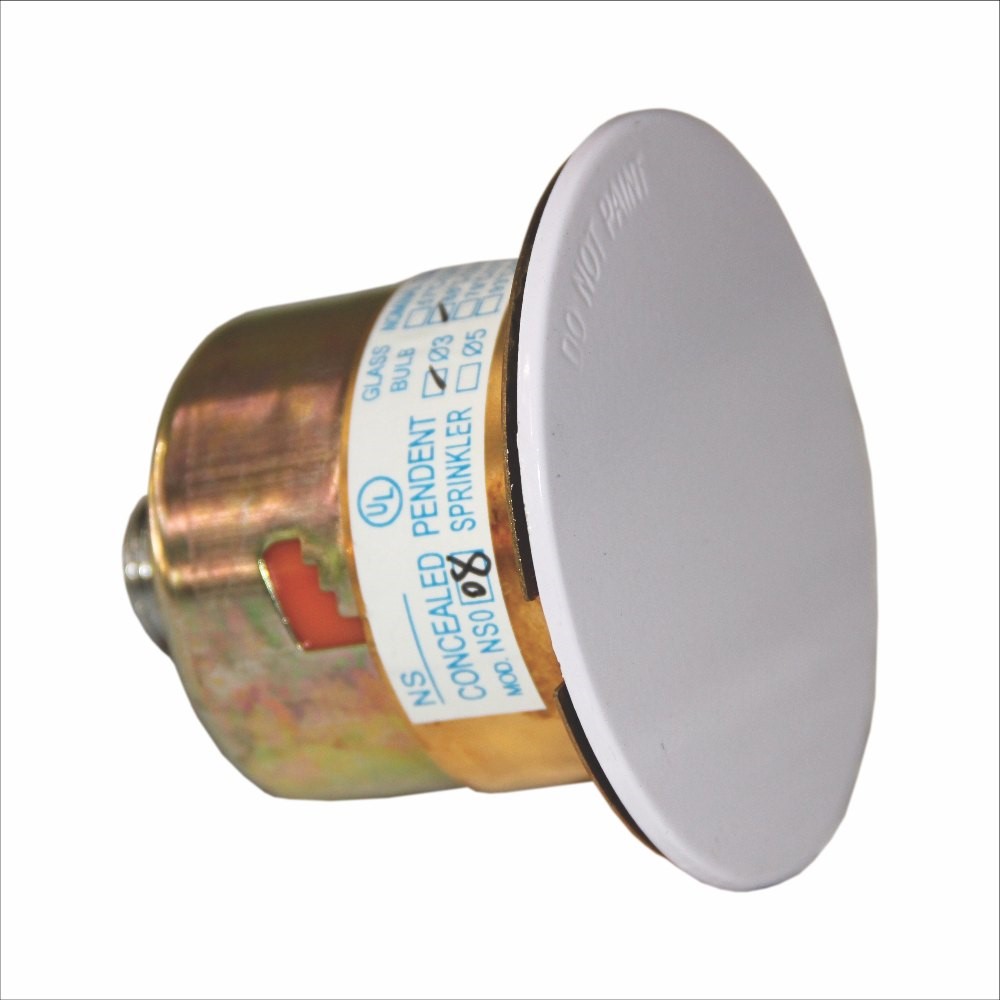

Concealed Type Sprinkler
- UL Listed.
- Made Of Bronze.
- Standard Response.
- Cover Plates Are Supplied.
- Maximum Working Pressure 175 Psi (12 Bar) .
Double Headed Hydrant
- Newage Double Headed Hydrant Valve are designed and manufactured as per IS:5290-1993.
- Highly Durable and Corrosion Resistant.
- Excellent Flow Characteristics.
Instantaneous Adaptors
- Body: Gunmetal / Aluminum Alloy.
- Size : 1.5” / 2.5”.
- Working Pressure : 10 bar.
- Hydrotest Pressure : 25 bar.

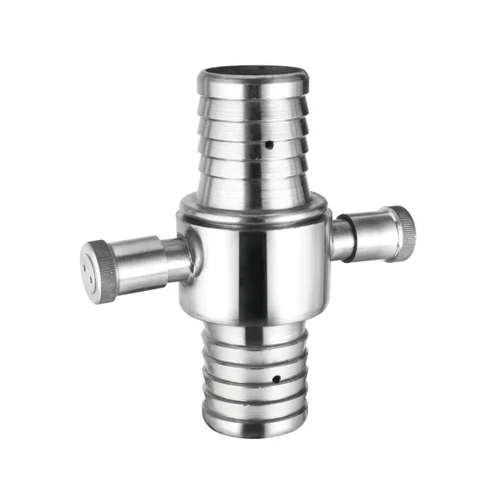

Hose Coupling
- As per BS 336 and IS 903.
- Body: Gunmetal / Aluminum Alloy / Stainless Steel.
- Working Pressure :10 bar.
- Test Pressure :23 bar.
- Aluminum couplings available in natural polish as well as hard anodized.
- Gunmetal couplings also available in Chrome finish.

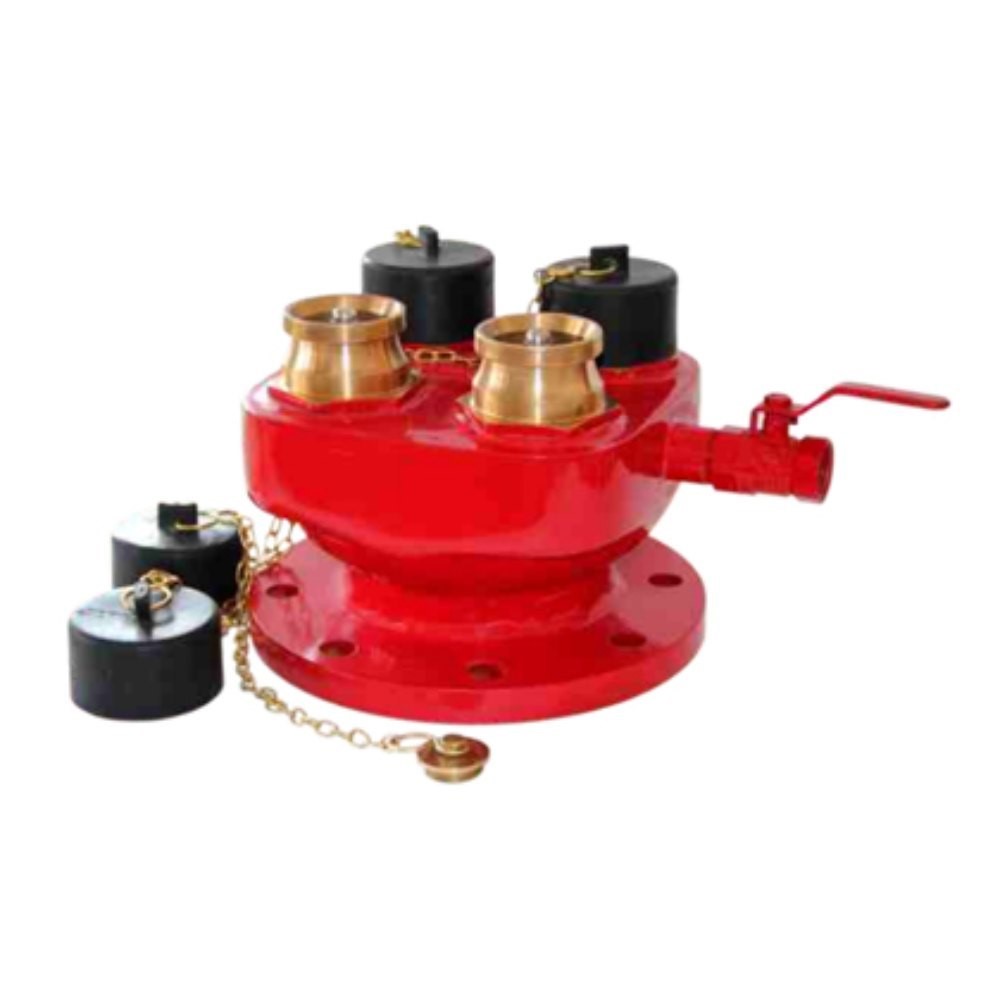

Dry Riser Fittings
- Body: Gun Metal or Aluminum Alloy or Cast Iron.
- Inlet : Two Instantaneous with NRV.
- Outlet : 6” Flanged.
- Working Pressure : 10 Bar.
- Test Pressure : 23 Bar.
Fire Extinguishers
- A fire extinguisher is a handheld active fire protection device usually filled with a dry or wet chemical used to extinguish or control small fires, often in emergencies.
- There are two main types of fire extinguishers: stored-pressure and cartridge-operated.
- Types Of Fire Extinguishers:
- Water
- Wet Chemical
- Mechanical Foam
- Dry Powder Chemical
- Carbon Di Oxide
- Clean Agent Gas

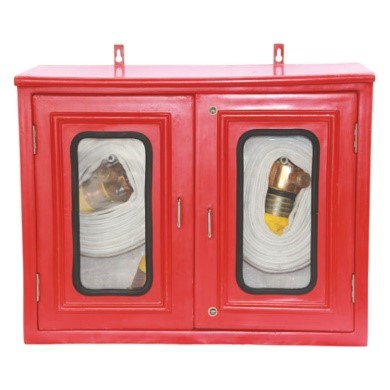

Hose Box
- Suitable for storing Two Nos 7.5 Mtr or 15 Mtr Hoses and one Nozzle.
- M.S. Hose box – 24” x 24” x 10” / 30”x 24”x 10” / 32” x 24” x 10”.
- FRP Hose Box – 30”x 24”x 10” / 32” x 24” x 10”.
- Lightweight.
- Weatherproof.
- Wall Mounted with MS Stand.
- Finished with P.O. Red Color.

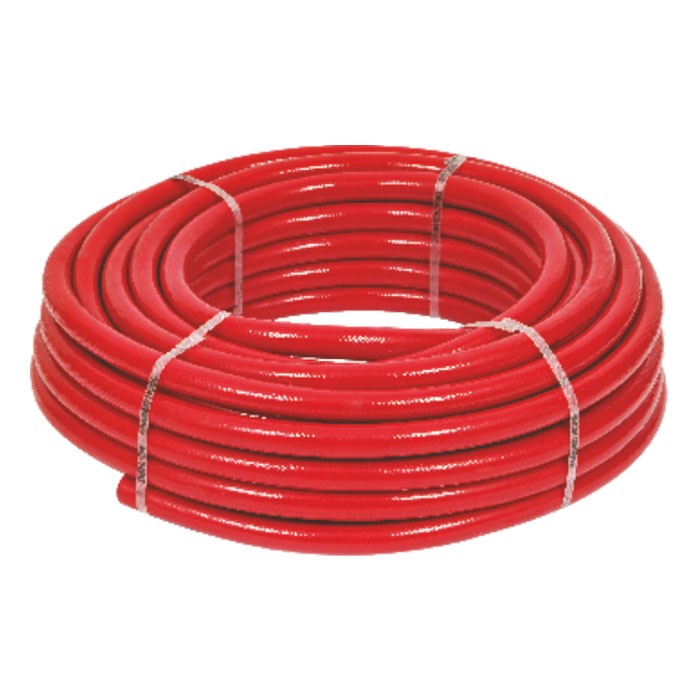

Reel Hoses
- Designed to accommodate up to 30 meters of 19 mm/ 20 mm/ 25 mm Water Hoses.
- Stainless Steel and Mild Steel Construction.
- Manufactured as per BS EN 671-1.
- Hydro Test Pressure: up to 18 bar.

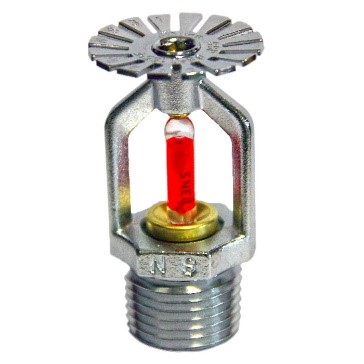

Sprinkler System
- UL Listed.
- Made Of Bronze.
- Quick Response.
- Maximum Working Pressure 175 Psi (12 Bar).
Fire Hose
- Designed for Aggressive Fire Fighting Applications.
- Circular woven Jacket made up of 100% Polyester yarn.
- High Quality Synthetic EPDM Rubber Lining.
- External Coating of specially formulated Synthetic Elastomer.
- Heat and Abrasion Resistant.
- ISI Marked.
- Germanischer Lloyd’s Approved.
- M.E.D. 96/98/EC Approved.
- Conforming to BS 6391:2009 Type 2.
- Available Colors – Red, Yellow, Blue, Orange, Green, Black.

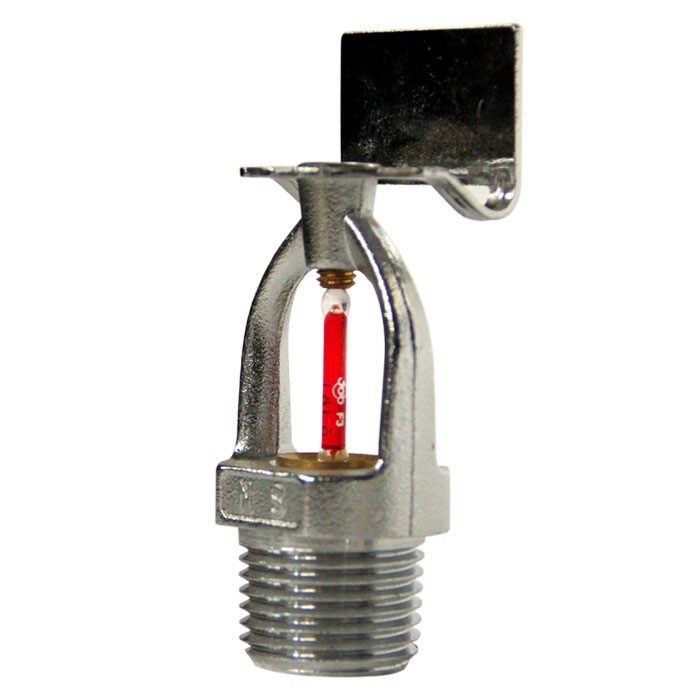

Side Wall Type Sprinkler
- UL Listed.
- Made Of Bronze.
- Standard Response.
- Maximum Working Pressure 175 Psi (12 Bar).

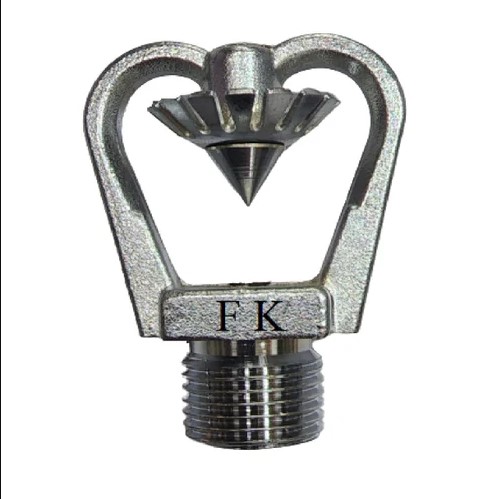

Spray Nozzle
- Directional Spray Nozzle with cone shaped spray pattern.
- Spray Nozzles are designed to produce extremely uniform coverage.
- Suitable for a minimum working pressure of 7 PSI (0.5 Bar) and maximum working pressure of 175 PSI (12 Bar).
- Wide Range of K-Factor and Spray Angle are available.
- Available in SS316 construction.

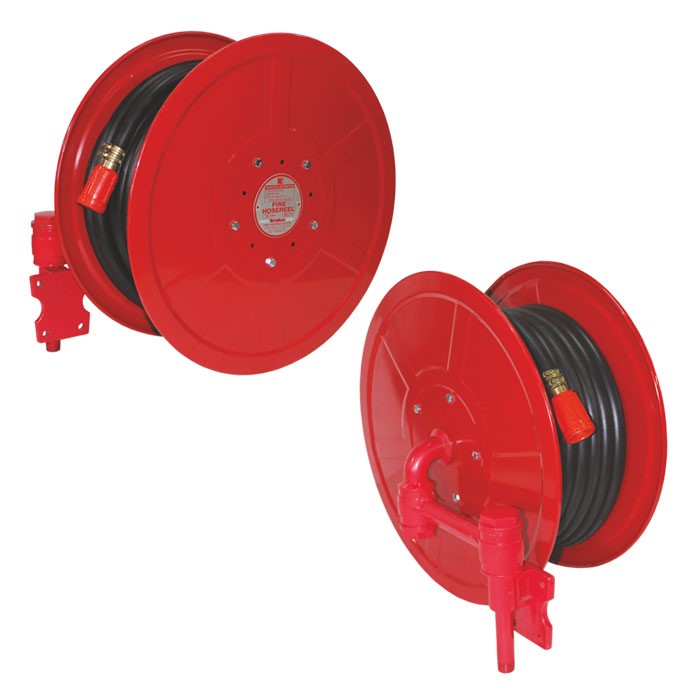

Hose Reel
- Designed and Constructed in conformance to IS 884.
- Aluminum Alloy Corrosion-free Water Ways.
- Red Powder Coated Finishing.
- Compact space design.
- Manual swing type with 180° swivel.
- Available Hose – Rubber / Thermoplastic / PVC.
- Operating Pressure – 12 Bar.
Dry Riser Fittings
- Body : Gun Metal or Aluminum Alloy or Cast Iron.
- Inlet: Two Instantaneous with NRV.
- Red Powder Coated Finishing.
- Outlet : 4” Flanged.
- Working Pressure : 10 Bar .
- Test Pressure : 23 Bar.

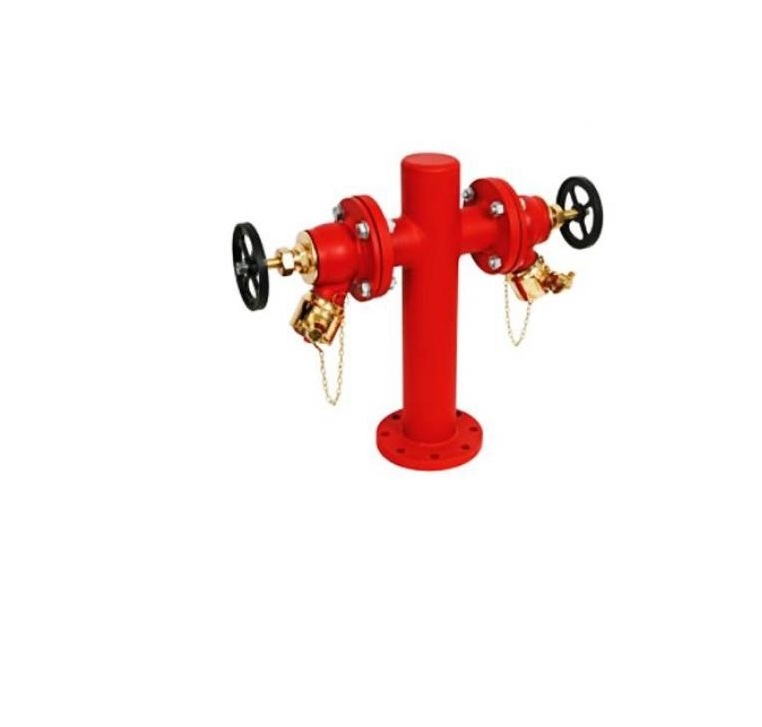

Stand Post Type Hydrants
- Body : Carbon Steel.
- Inlet : 4” Flanged.
- Outlet : 2 Nos. of 3” Flanged. Optional, 1 Nos. of 4” Flanged Outlet for Monitor.
- Working Pressure : 150 PSI.
- Test Pressure : 325 PSI.

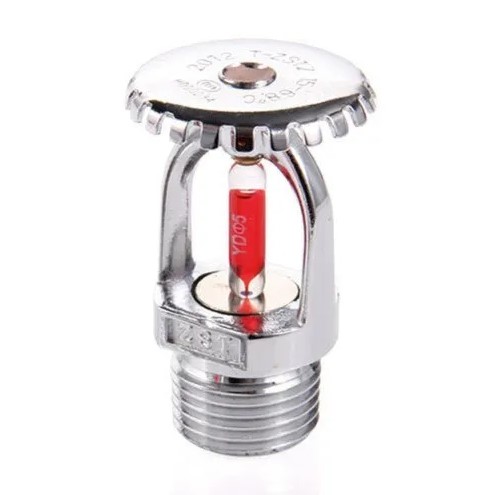

Upright Sprinkler System
- UL Listed.
- Made Of Bronze.
- Standard Response.
- Maximum Working Pressure 175 Psi (12 Bar).

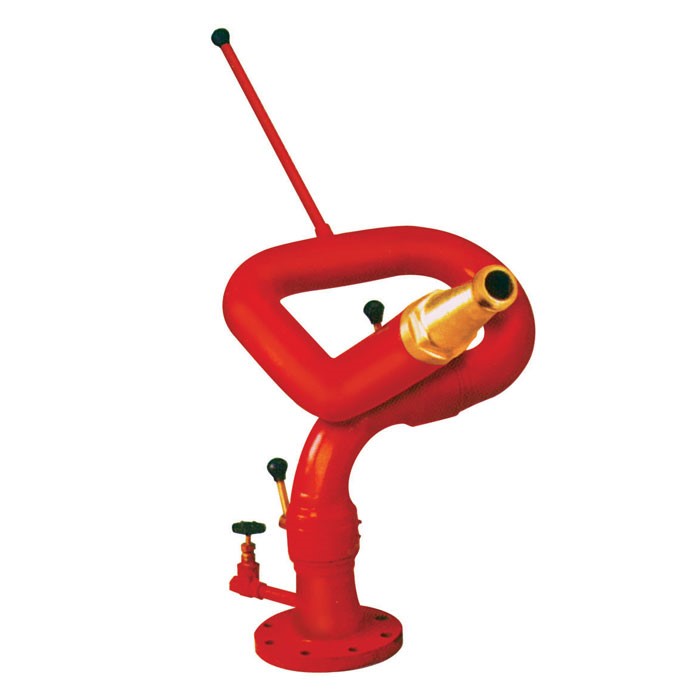

Water Jet Moniters
- Ideal for Fixed Installation.
- Made out of Carbon Steel heavy duty seamless pipe, hot dip galvanized for Corrosion Resistance.
- Design that ensures ease of operation and maintenance.
- Flanged Inlet – Dimensions as per Requirement.
- Nozzle Material of Construction is available in Aluminum Alloy, Stainless Steel and Gunmetal.
- ISI Marked IS : 8442 : 1977 (Reaffirmed 1996).
- Trolley Mounting with Inlets containing Non-Return Valve Optional.

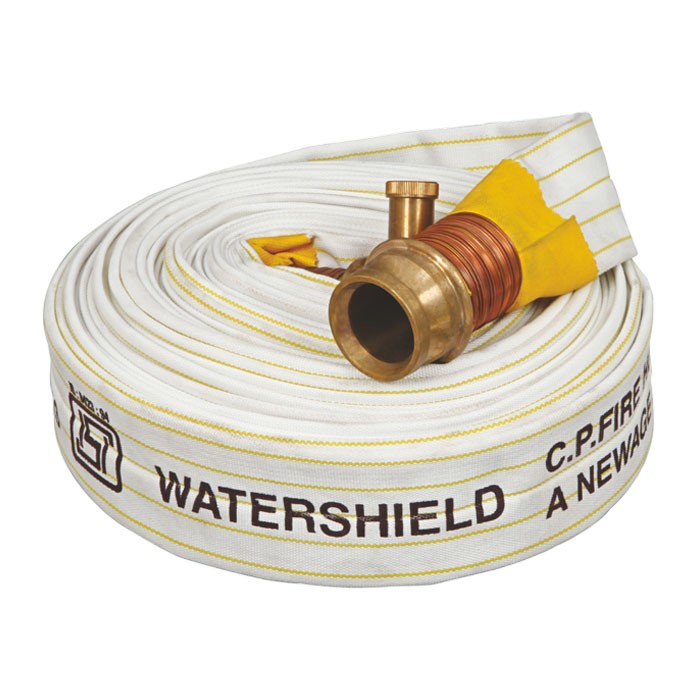

Watershield Fire Hose
- Forestry Light Weight, Self-Protecting, Attack Hose.
- Circular woven Jacket made up of 100% Polyester yarn.
- Smooth Rubberized Water Way for Uniform Controlled Percolation and Even Wetting.
- Flame Resistant.
- Also used in for Irrigation, Bush Fires any other Unmanned Areas.
- ISI Marked.
- Conforming to Australian Standard 2792-92, Canadian Standard.
- ULC S519.1-95, New Zealand standard (NRFA) 1998.
Hose Reel
- Made up of High quality PVC Polymer.
- Light in weight and Durable.
- Jet Spray Type.
- Strong and Corrosion Free.
- Serrated end for hose fitting .
- 16 GPM @100 PSI .

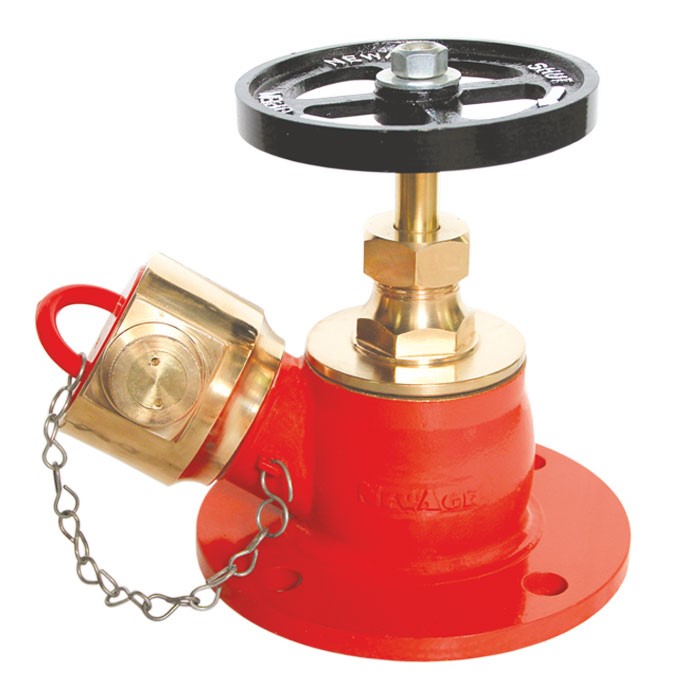

Hydrant Valves
- ISI Marked Landing Valve, as per IS:5290-1993, is designed for the primary Fire Fighting Application.
- Body of the Valve and the Internals are tested at 300 psi or 21 Kg/cm.
- Compact with Excellent Flow Characteristics.
- Generally conforming to BS:5041 Part 1.
